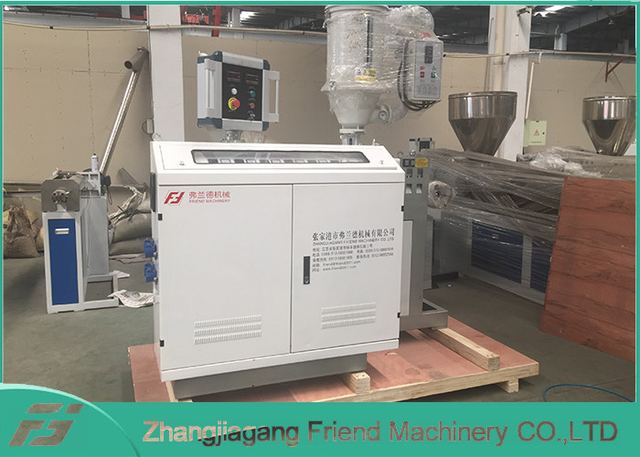

Abs Plastic Extrusion Production Line Polycarbonate Rigid Sheet
Model SJ25/28
Overview
Abs Plastic Extrusion Production Line Polycarbonate Rigid Sheet supplied by Zhangjiagang Friend Machinery Co.,lTD. Listed under Extruders. Key published specifications: Screw Diameter 25 mm; Screw Material 38CrMoAlA; Hardness of Screw HV900-1000; Depth of Nitrogen Treatment 0.4-0.7 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Screw Diameter | 25 mm |
|---|---|
| Screw Material | 38CrMoAlA |
| Hardness of Screw | HV900-1000 |
| Depth of Nitrogen Treatment | 0.4-0.7 mm |
| Screw Straightness | ＜0.015 mm |
| Barrel Material | 38CrMoAlA |
| Barrel inner surface hardness | HV≥940 |
| Main Motor Power | 1.1KW |
| Heating Method | ceramicHeater+ 304stainless steel cover |
| Heating Zones | 3 Periods(Screw Barrel 3periods ) |
| Barrel Cooling Method | Forced Air Cooling |
| Screw Maximum Rotating Speed | 0-89 rpm |
| Maximum Capacity | 2Kg/h |
| Screw and Barrel | Zhou shan Jinjiu Screw |
| Gearbox | china brand |
| Breaker | Delix brand |
| Ampere meter | AoYi brand |
| Certification | CE,SGS |
| Material | Plastic Pellet |
| Control System | ABB Inverter |
| Technoical parameters | Model No. SJ25 |
