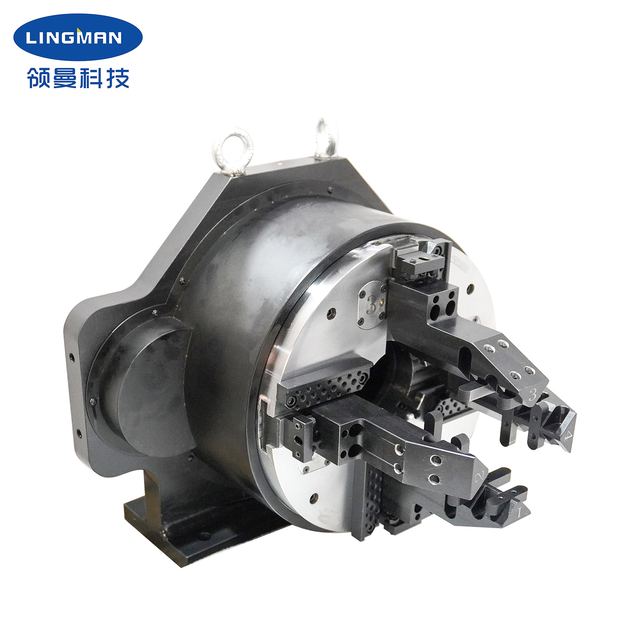

90mm Full Stroke Independent Chuck With Feed Pull Function And 4 Jaws For Tube Cut-Off Machine
Model F90BF
Overview
90mm Full Stroke Independent Chuck With Feed Pull Function And 4 Jaws For Tube Cut-Off Machine, listed under Metal, Cut-Off Parts by Lingman Machinery Technology (Changzhou) Co., Ltd in Changzhou, Jiangsu. Through hole 95mm, drive type Pneumatic / Servo and repeat accuracy ≤0.05mm are among the specifications published.
Technical specifications
| Through Hole | 95mm |
|---|---|
| Drive Type | Pneumatic / Servo |
| Repeat Accuracy | ≤0.05mm |
| Rotation Accuracy | ≤0.05mm |
| Max Speed | 200 RPM |
| Working Pressure | 0.4–0.8MPa |
| Application | Round, Square, Special-Shaped Pipes |
| Center Height | 200mm |
| Stroke | 86mm |
| Allowable Pressure | 0.2-0.9Mpa |
| Limit Speed | 200R/Min |
| Clamping Range | 5-91mm |
| Max. Clamping Force | 0.6KN |
| Weight | 102KG |
