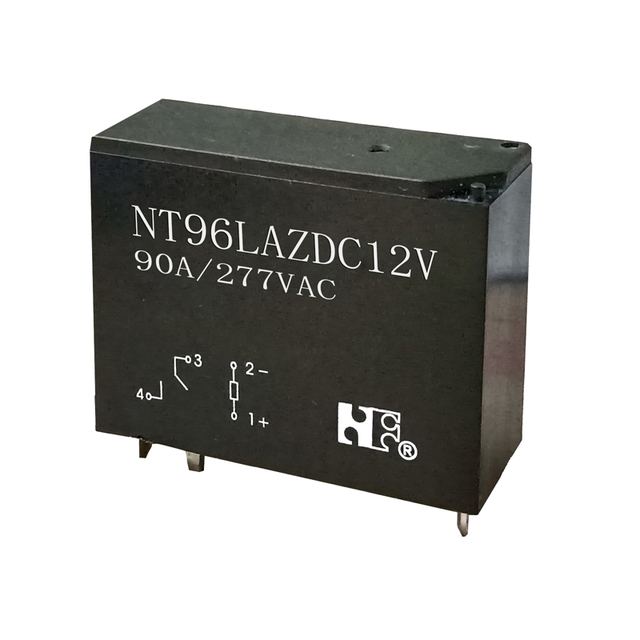

90A High Power Latching Relay
Model NT96L
Overview
90A High Power Latching Relay supplied by Ningbo Forward Relay Corp., Ltd. Listed under Relays. Key published specifications: Contact Arrangement 1A(SPSTNO) 1C(SPDT(B-M)); Contact Material AgSnO₂; 277Vac:1×104 70A/277VAC:3×10⁴; Max.Switching Power 6000W 30800VA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Contact Arrangement | 1A(SPSTNO) 1C(SPDT(B-M)) |
|---|---|
| Contact Material | AgSnO₂ |
| 277Vac:1×104 | 70A/277VAC:3×10⁴ |
| Max.Switching Power | 6000W 30800VA |
| Max.Switching Voltage | 440VAC Max.Switching Current:100A |
| Contact Resistance | ≤10mΩ(1A/24VDC) Item 4.12 of IEC61810-7 |
| Mechanical | 1×10⁶ Item 4.31 of IEC61810-7 |
| 6 Type of load | Nil: AC rating; L:DC rating |
| 8 Coil rated voltage(V) | DC: 6,9,12,24,48 |
| 440VAC Max.Switching Current | 100A |
