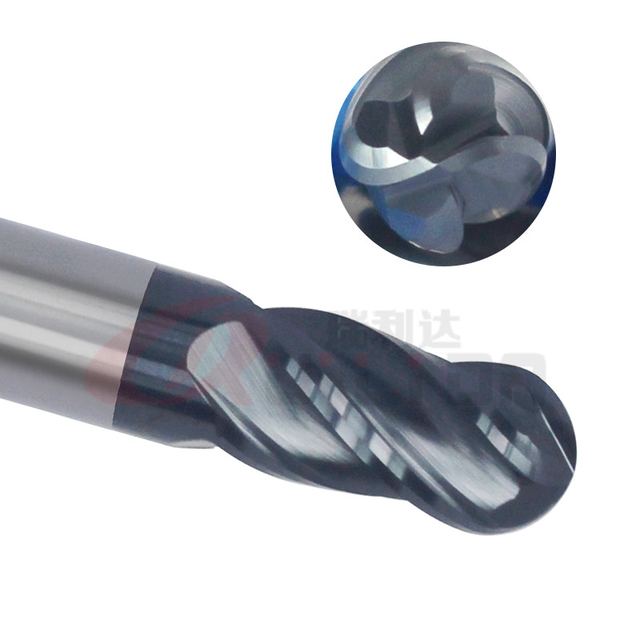

8mm 4F 9/16" 7/16" 5/16" Ball Nose End Mill Steel Cnc Ball Nose Bit
Model HRC50
Overview
8mm 4F 9/16" 7/16" 5/16" Ball Nose End Mill Steel Cnc Ball Nose Bit supplied by Changzhou Ruilida Tools Co., Ltd. Key published specifications: Diameter 8mm; Flute Length 16mm; Overall Length 60mm; Shank Diameter 8mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Diameter | 8mm |
|---|---|
| Flute Length | 16mm |
| Overall Length | 60mm |
| Shank Diameter | 8mm |
| Carbide Rod | ZY10EF Zhangyuan Carbide |
| Milling type | CNC Milling Machine |
| Coating | AlTiN/Others |
| Flute Tolerance | Within 0/-0.02mm |
| Process machine | ANCA & |
