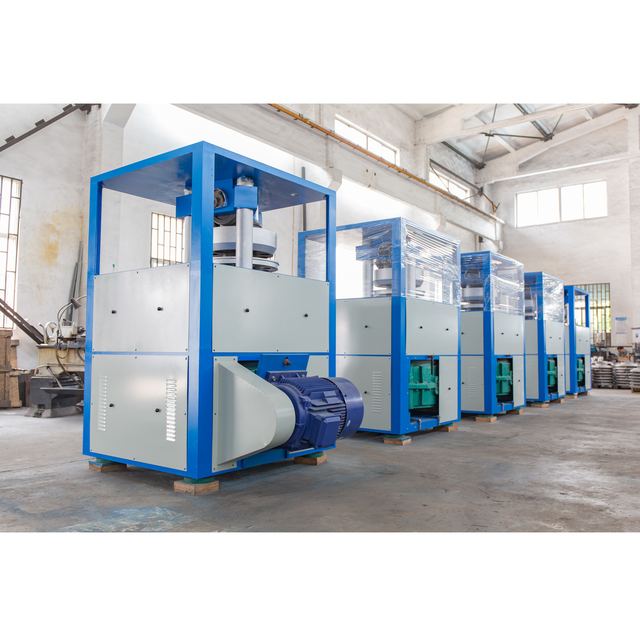

80mm Large Rotary Tablet Press Machine / TCCA Tableting Press Machinery
Model ZP80-9B
Overview
80mm Large Rotary Tablet Press Machine / TCCA Tableting Press Machinery supplied by Changzhou Chenguang Machinery Co., Ltd. Key published specifications: Max Diameter 80mm; Style Large Rotary Tablet Press; Machine Weight 6000kg; Machine Size 1430*1280*2120 Mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max Diameter | 80mm |
|---|---|
| Style | Large Rotary Tablet Press |
| Machine Weight | 6000kg |
| Machine Size | 1430*1280*2120 Mm |
| Motor | 22 Kw |
| Max Working Pressure | 600 Kn |
| Model | ZP80-9B |
| Dies | 9 sets |
| Max pressure | 800 Kn |
| Dia of Tablet | 40 --80 mm |
| Depth of Fill | 60mm |
| max Thickness of Tablet | 31 mm |
| Turret Speed | 1--10r/min |
| Max Production Capacity | 1-5400 pcs/h(adjustable) |
| Overall Size | 1430*1280*2120 mm |
| Net Weight | 6000kg |
| Request A Quote | Send |
| Application | 20g 1inch chlorine tablet |
| Pressure | 400kn |
| type | mechnical rotary press machine |
| certificate | CE SGS |
