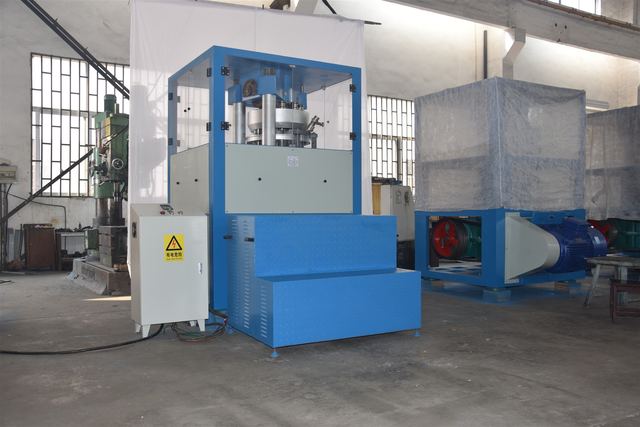

80mm Large Rotary Tablet Press Machine High Working Pressure For Chemical Industry
Model ZP80-9B
Overview
80mm Large Rotary Tablet Press Machine High Working Pressure For Chemical Industry, listed by Changzhou Chenguang Machinery Co., Ltd in Changzhou, Jiangsu. Published figures include max diameter 80mm, style Large Rotary Tablet Press and machine weight 6000kg.
Technical specifications
| Max Diameter | 80mm |
|---|---|
| Style | Large Rotary Tablet Press |
| Machine Weight | 6000kg |
| Machine Size | 1430*1280*2120 Mm |
| Motor | 22 Kw |
| Max Working Pressure | 600 Kn |
| Model | ZP80-9A |
| Dies | 9 sets |
| Max pressure | 800 Kn |
| Dia of Tablet | 50 --80 mm |
| Max Depth of Fill | 52 mm |
| Thickness of Tablet | 15-27mm |
| Turret Speed | 1--10 r/min |
| Max Production Capacity | 1-5400 pcs/h(adjustable) |
| Overall Size | 1430*1280*2120 mm |
| Net Weight | 6500kg |
| Request A Quote | Send |
| Application | 20g 1inch chlorine tablet |
| Pressure | 400kn |
| type | mechnical rotary press machine |
| certificate | CE SGS |
