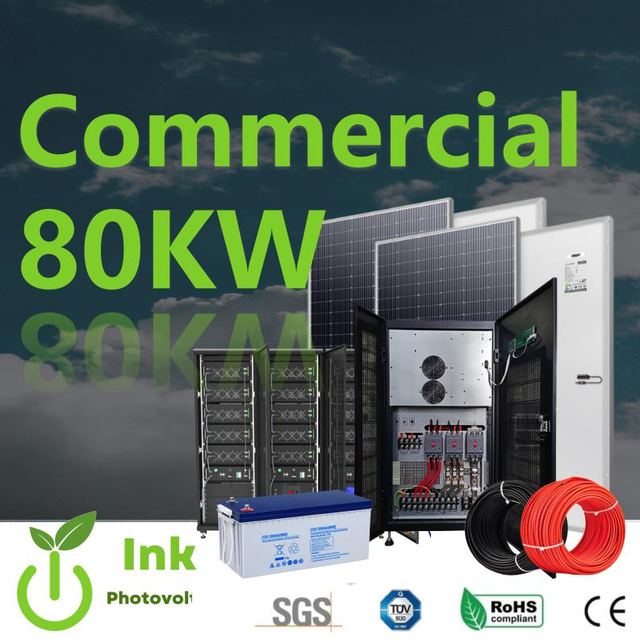

80kw solar system
Model H6T-360v
Overview
80kw solar system supplied by Iinkpv. Listed under Solar Electric Panels. Key published specifications: Model Type 480w solar panel; Peak Power(Pmax) 480W; Maximum Power Voltage(Vmp) 39A; Maximum Power Current(Imp) 12.3A. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model Type | 480w solar panel |
|---|---|
| Peak Power(Pmax) | 480W |
| Maximum Power Voltage(Vmp) | 39A |
| Maximum Power Current(Imp) | 12.3A |
| Open Circuit Voltage(Voc) | 46.8V |
| Short Circuit Current(Isc) | 12.91A |
| Peak Power（20ms) | 240KVA |
| AC Input Voltage Range | 380V AC |
| Output Wave | Pure sine wave |
| Noise | ≤65dB |
| Elevation | 2000m（More than derating） |
| Installation Method | Tower |
| Humidity | 0%~95% ,No condensation |
| Output voltage | Three phase |
| Application | Home/School/Office/Commercial |
| Three phase | 380Vac/400Vac±10%(customized 190Vac/200VAC) |
| 210*210 cells Efficiency | 22.03% weight:24.5KG Size:2148*1020*35mm |
| Capacity | 2V/1200AH |
| Size | 495x195x393mm |
| Inverter power | T150kw/360v |
| Low voltage | 324V |
| High voltage | 442V, |
| Charging efficiency | 90%-95%, AC charger 10-30A 60% stronger 100% |
| Output | 220V 380V 415V 50/60HZ |
