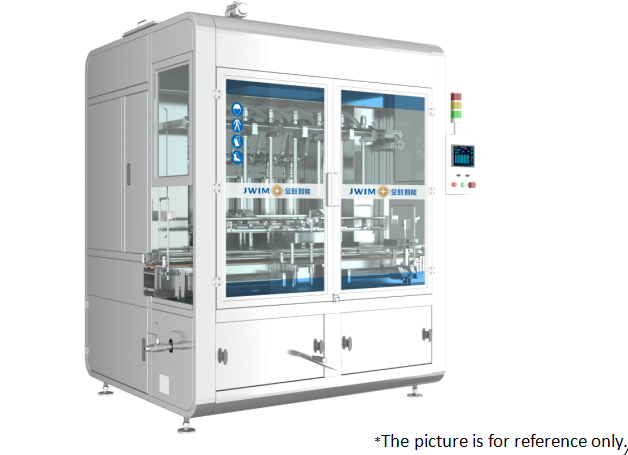

8-Head Piston Filling Machine
Model CCG5000-8TJ
Overview
8-Head Piston Filling Machine, listed by Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd. Published figures include external dimension 2365*1600*2750mm, installation Engineer Available To Service Overseas and machine weight 1920kg.
Technical specifications
| External Dimension | 2365*1600*2750mm |
|---|---|
| Installation | Engineer Available To Service Overseas |
| Machine Weight | 1920kg |
| Filling Type | 8Heads Piston Filling |
| Filling Precision | (1000ml) ±3g, (5000ml) ±5g |
| Power | ~380V 50Hz/2.2KW |
| Filling Volume | 1000-5000ml |
| Capacity | 1000ml: ≤1800BPH 5000ml:≤800 BPH |
