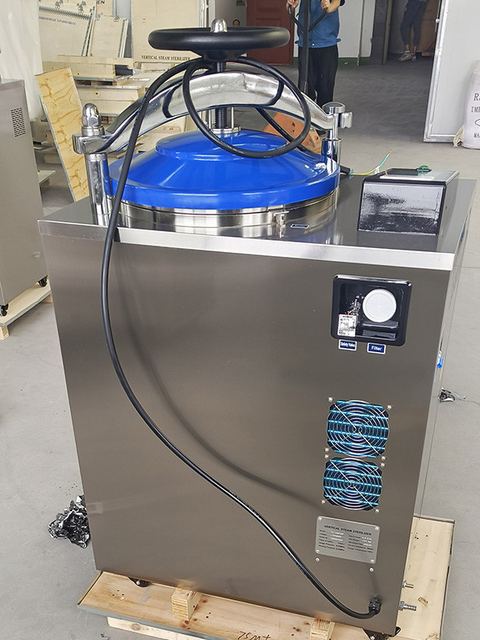

75L Vertical Pulsating Vacuum Sterilizer Sterilization For Instruments And Dressings
Model STV-V 75
Overview
75L Vertical Pulsating Vacuum Sterilizer Sterilization For Instruments And Dressings supplied by Stertek（Nanjing）Medical Equipment Co.,ltd. Key published specifications: Certification CE, ISO13485,ISO9001; Volume 75L; Baskets Number 2 Pcs Baskets; Control Display LCD Display. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO13485,ISO9001 |
|---|---|
| Volume | 75L |
| Baskets Number | 2 Pcs Baskets |
| Control Display | LCD Display |
| Data Recording | Printer |
| Body Material | Stainless Steel 304 |
| Chamber Dimention | ∅400*655mm |
| Net Weight | 124kg |
| Working Press. | 0.22Mpa |
| Model | STV-V75 |
| Power | 4.5kW |
| Voltage | AC 220V,50HZ |
| Rated working pressure | 0.22Mpa |
| Sterilization time setting range | 4~120 min |
| Drying time setting range | 0~240min |
| Chamber volume | Ø400×655 |
| Bucket dimension | Ø380×560 |
| Basket dimension(optional) | Ø360×280×2 |
| Gross/net weight | 150/124KG |
| Capacity | 35l, 50l,75l,100l |
| Door Structure | Handwheel door |
| Number of Baskets | 2 pcs sterilizing baskets |
| Display | LCD Touch Screen |
