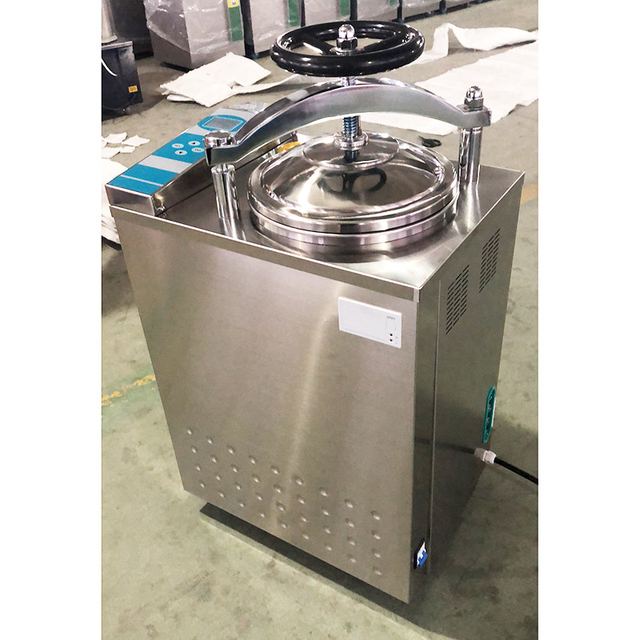

75L Hand Wheel PT Testing Connector Vertical Pressure Steam Sterilizer
Model STV-HV75
Overview
75L Hand Wheel PT Testing Connector Vertical Pressure Steam Sterilizer supplied by Stertek（Nanjing）Medical Equipment Co.,ltd. Key published specifications: Certification CE, ISO13485,ISO9001; Door Structure Handwheel Door; Number Of Baskets 2 Pcs Sterilizing Baskets; Data Recording Printer Equiped. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO13485,ISO9001 |
|---|---|
| Door Structure | Handwheel Door |
| Number Of Baskets | 2 Pcs Sterilizing Baskets |
| Data Recording | Printer Equiped |
| Material | Stainless Steel 304 |
| Drying Function | Vacuum Drying |
| Chamber Size | ∅400*600mm |
| Net Weight | 142kg |
| Working Press. | 0.25Mpa |
| Model | STV-HV50 |
| Chamber volume | 50Lφ340×550mm |
| 75Lφ400×600mm | 100Lφ440×650mm |
| Design pressure | 0.3MPa |
| Max. working pressure | 0.25MPa |
| Timer range | 0 - 99min |
| Power | (3.2 + 1.6)KW/AC220V.50Hz |
| (3.2 + 1.8)KW/AC220V.50Hz | (3.2 + 1.9)KW/AC220V.50Hz |
| Capacity | 35l, 50l,75l,100l |
| Display | LCD Touch Screen |
