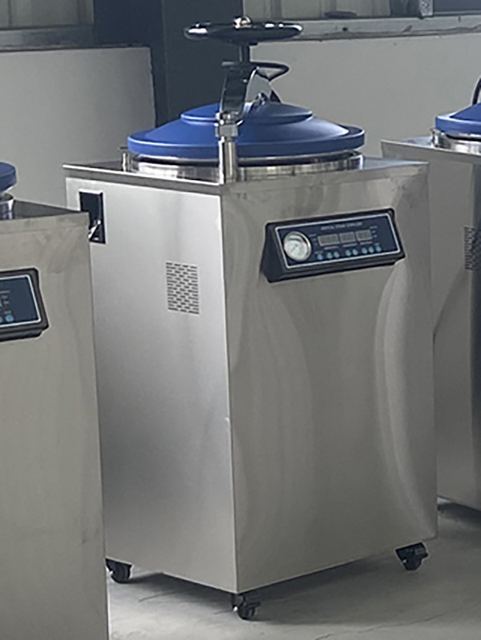

75L Automatic Protection And Drying Function Included Vertical Pressure Sterilizer
Model STV-H75
Overview
75L Automatic Protection And Drying Function Included Vertical Pressure Sterilizer supplied by Stertek（Nanjing）Medical Equipment Co.,ltd. Key published specifications: Certification CE, ISO13485,ISO9001; Capacity 75L; Chamber Dimention Ø400×625; Door Type Handwheel Door. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO13485,ISO9001 |
|---|---|
| Capacity | 75L |
| Chamber Dimention | Ø400×625 |
| Door Type | Handwheel Door |
| Baskets Number | 2 Pcs Sterilizing Baskets |
| Control | LED Display |
| Data Recording | External Printer Optional |
| Body Material | Stainless Steel 304 |
| Working Press. | 0.22Mpa |
| Model | STV-H75 |
| Volume | 75L |
| Power | 4.5kW |
| Voltage | AC 220V,50HZ |
| Rated working pressure | 0.22Mpa |
| Sterilization time setting range | 4~120 min |
| Drying time setting range | 0~240min |
| Chamber volume | Ø400×625 |
| Bucket dimension | Ø380×560 |
| Basket dimension(optional) | Ø360×280×2 |
| Gross/net weight | 120/90KG |
| Vertical Steam Sterilizer Autoclave Features | Structure & Design |
| Door Structure | Handwheel door |
| Number of Baskets | 2 pcs sterilizing baskets |
| Display | LCD Touch Screen |
