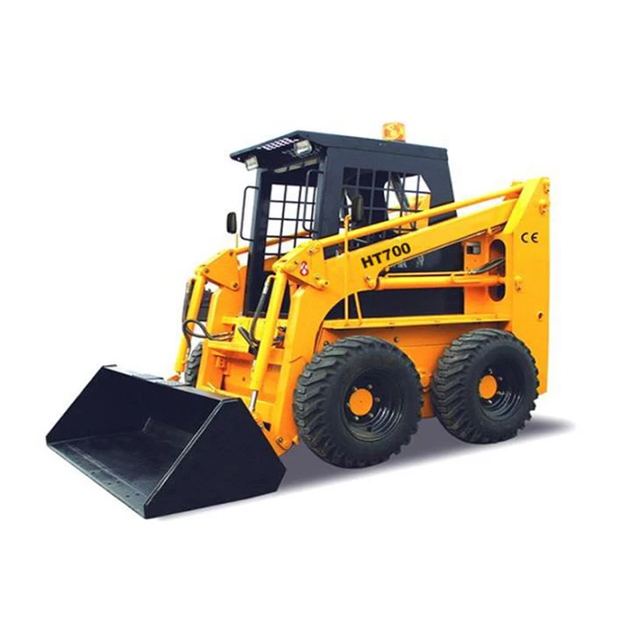

700kg Skid Loader
Model XINCHAI C490BPG / Yanmar 4TNE92
Overview
700kg Skid Loader supplied by Jining Haitui Heavy Industry Machinery Co.,Ltd. Listed under Loaders. Key published specifications: Operating Weight 3000 kg; Overall Dimensions L×W×H 3200×1740×2030 mm; Bucket Capacity 0.4 m³; Rated Load 700 kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 3000 kg |
|---|---|
| Overall Dimensions L×W×H | 3200×1740×2030 mm |
| Bucket Capacity | 0.4 m³ |
| Rated Load | 700 kg |
| Fuel Tank Capacity | 60 L |
| Hydraulic standard Flow | 62.5 L/Min |
| Wheel Base | 991 mm |
| Rated Power | 37/2650 kw/rpm 33/2450 kw/rpm |
| Displacement | 2.67 L |
| Max Rise Height | 3670 mm |
| Max Dumping Height | 2380 mm |
| Min Dumping Distance | 700 mm |
| Min Ground Clearance | 185 mm |
| Front Turning Radius | 1958 mm |
| Rear Turing Radius | 1630 mm |
| Steering Type | Skid Steering |
| Operating Control | Mechanical Joystick / Hydraulic Joystick |
| Type number | HT700 |
