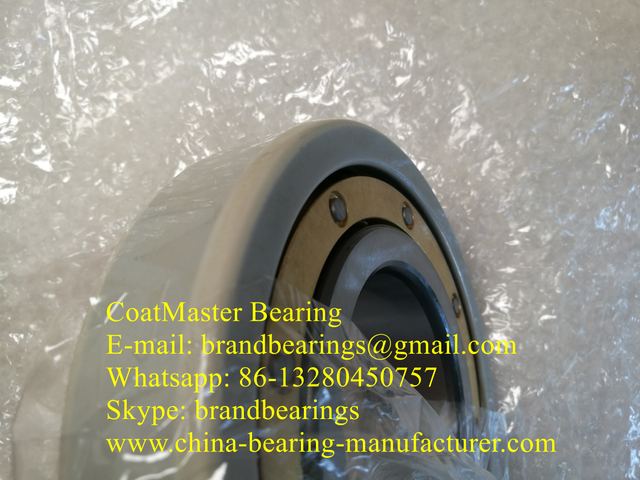

6236 M/C5HS0VL0241 electrically insulated INSOCOAT deep groove ball bearings
Overview
6236 M/C5HS0VL0241 electrically insulated INSOCOAT deep groove ball bearings supplied by CoatMaster Bearings Liaocheng ZhuoYi Bearing Co.,Ltd. Key published specifications: Designation 6236 M/C5HS0VL0241; Electrical Resistance Voltages Up To 3000 V DC; Cage Brass; Cleance C5. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Designation | 6236 M/C5HS0VL0241 |
|---|---|
| Electrical Resistance | Voltages Up To 3000 V DC |
| Cage | Brass |
| Cleance | C5 |
| Dimension | 180×320×52 mm |
| Weight | 18.5 kg |
| Application | Electric Traction Motors |
| Basic dynamic load rating-C | 230kN |
| Basic static load rating-Co | 240kN |
| Fatigue load limit-Pu | 0 kN |
| Reference speed | 0 r/min |
| Limiting speed | 3800 r/min |
