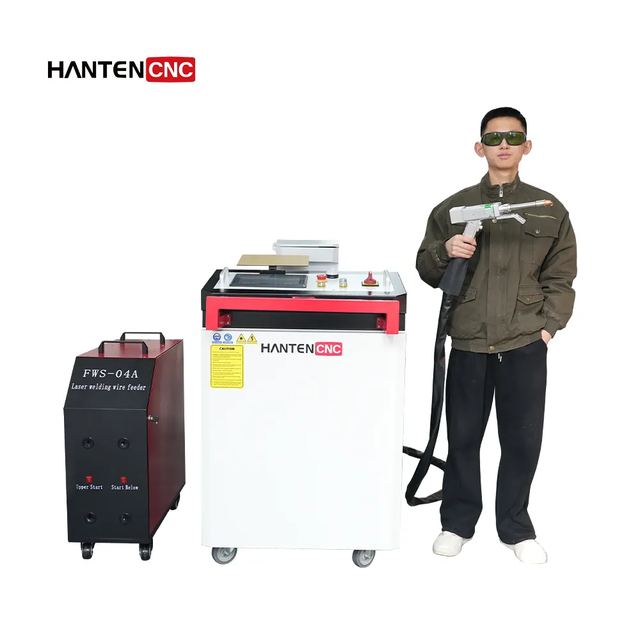

6000W Handheld Laser Welding Machine
Model HTW6000
Overview
6000W Handheld Laser Welding Machine supplied by HANTENCNC. Key published specifications: Laser Power 6000W; Laser Source Max / BWT; Max Power Consumption 24 kW; Laser Wavelength 1070nm±20nm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Power | 6000W |
|---|---|
| Laser Source | Max / BWT |
| Max Power Consumption | 24 kW |
| Laser Wavelength | 1070nm±20nm |
| Working Voltage | 380V, 50/60Hz |
| Focusing lens | F250 |
| Focusing Focal Length | 250 mm (F250 focusing lens) |
| Length of Laser Fiber Cable | 25m or Customized |
| Laser Type | Continuous Fiber Laser |
| Language Support | 30+ Languages (Customizable) |
| Maximum Weld Bead Width | 12 mm |
| Touch Screen | 10-inch HD Display |
| Fiber Compatibility | QBH, 50 μm core |
| Cooling system | Water-cooled |
| Handheld Welding Head Weight | 1.3 KG |
| Machine Dimensions | 1420*740*1220mm |
| Machine Weight | 241KG |
