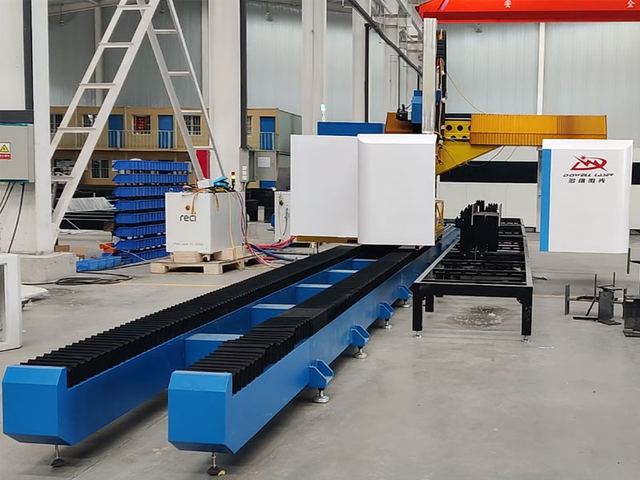

6000w-12000w Cantilever China CNC Laser Profile Cutting Machine
Overview
6000w-12000w Cantilever China CNC Laser Profile Cutting Machine supplied by Dowell Laser. Key published specifications: Power 6000w - 30kw; Workpiece length L≤ 12000mm, support customization; Maximum processing pipe length 12500mm; X, Y axis positioning accuracy ±0.10mm/m. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power | 6000w - 30kw |
|---|---|
| Workpiece length | L≤ 12000mm, support customization |
| Maximum processing pipe length | 12500mm |
| X, Y axis positioning accuracy | ±0.10mm/m |
| X, Y axis repeat positioning accuracy | ±0.05mm |
| Cutting thickness | perforation cutting 1-40mm |
| Maximum moving speed | X axis: 15m/min, Y, Z axis: 30m/min |
| Shortest tail length | zero tail |
| Cutting head | Precise |
| High-precision disc reducer | Motoroli |
| High-precision helical rack | YYC |
| Height adjuster | Hongyuda |
| Host servo drive and motor | Huichuan |
| Regulated power supply | Domestic matching |
| Other materials | Carbon steel |
