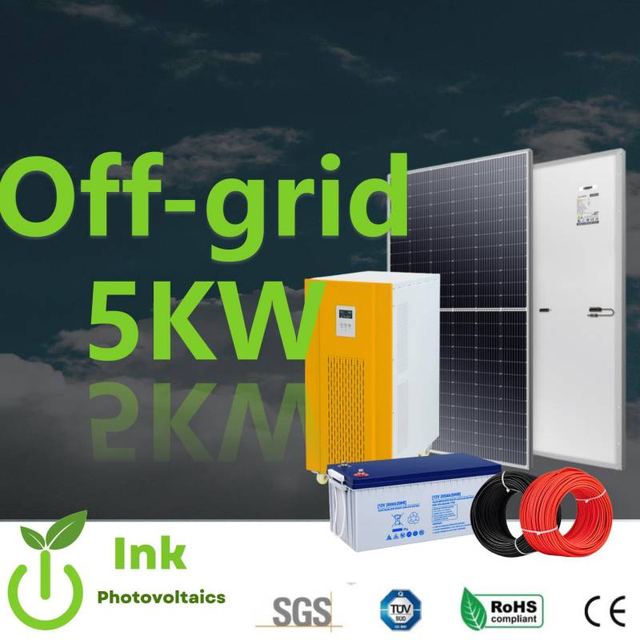

5kw solar system
Overview
5kw solar system supplied by Iinkpv. Listed under Solar Electric Panels. Key published specifications: Model Type 415W half-cut solar panel; Peak Power(Pmax) 415W; Maximum Power Voltage(Vmp) 31.3V; Maximum Power Current(Imp) 12.78A. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model Type | 415W half-cut solar panel |
|---|---|
| Peak Power(Pmax) | 415W |
| Maximum Power Voltage(Vmp) | 31.3V |
| Maximum Power Current(Imp) | 12.78A |
| Open Circuit Voltage(Voc) | 37.56V |
| Short Circuit Current(Isc) | 13.67A |
| Peak Power（20ms) | 15000VA |
| AC Input Voltage Range | For 220V 145VAC~275VAC |
| Output Wave | Pure sine wave |
| Noise | ≤65dB |
| Elevation | 2000m（More than derating） |
| Installation Method | Tower |
| Humidity | 0%~95% ,No condensation |
| Type | Off-grid with battery back up |
| Output voltage | Single phase or three phase |
| Application | Home/School/Office/Commercial |
| Single phase | 110V/120V/220V/230V/240V ±2% |
| Three phase | 380Vac/400Vac±10%(customized 190Vac/200VAC) |
| Power | 415W |
| Size | 1725*1134*30mm |
| Product Size | 360*345*145mm |
| PV controller model | Real MPPT 96V/60A |
| Capacity | 12V/200AH |
