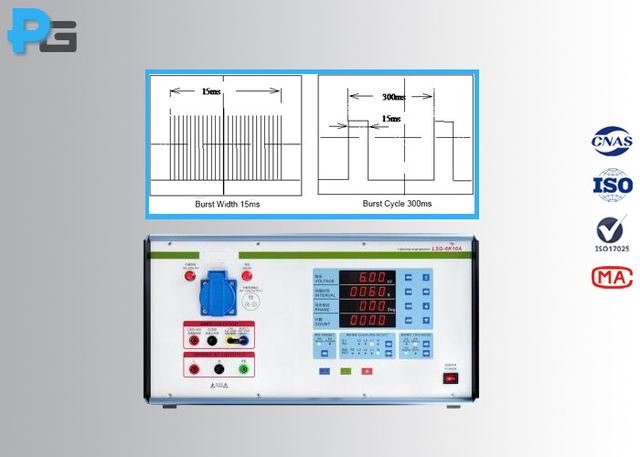

5KV 3 Phase EFT Generator with PLC Touch Screen
Model EFT-5K
Overview
5KV 3 Phase EFT Generator with PLC Touch Screen supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-lab Calibration Certificate; Standard IEC61000-4-4; Output Voltage 5KV; CDN 380V/16A, 380V/30A. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-lab Calibration Certificate |
|---|---|
| Standard | IEC61000-4-4 |
| Output Voltage | 5KV |
| CDN | 380V/16A, 380V/30A |
| Control System | PLC Touch Screen |
| Shippment | By Express |
| Working Power | AC220±10％,50/60Hz, 300W |
| Dimension | 470mm(W)×215mm(H)×500mm(D) |
| Model | EFT-5K16 / EFT-5K30 |
| Open Circuit Output Voltage | 0.25-5kV ±5% |
| 50Ω Load Output Voltage | 0.125-2.5kV ±5% |
| Pulse Waveform | 5/50ns (50Ω/1000Ω load) |
| Rise Time | 5ns ±30% (50Ω load) |
| Output Polarity | Negative/Positive |
| Repetition Frequency | 0.1-1200.0kHz ±10% |
| Burst Period | 100-999ms (adjustable) |
| Coupling Network | 3-phase 380V/16A or 30A, 50/60Hz |
| Coupling Capacitor | 33nF ±10% |
| Power Requirements | AC220±10%, 50/60Hz, 300W |
| Dimensions | 470(W)×215(H)×500(D)mm |
| Weight | Approx. 25kg |
| Voltage Oscillation Frequency | 100kHz±10% |
