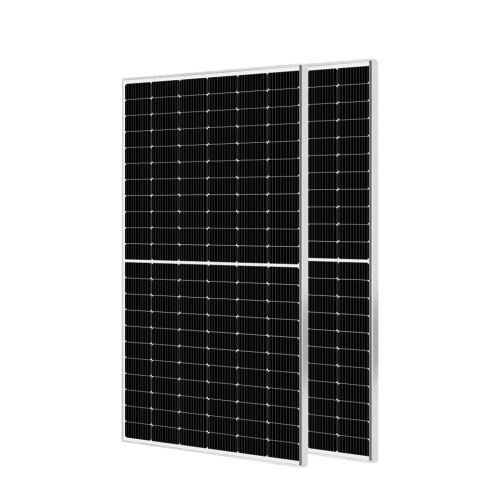

520w solar panel
Overview
520w solar panel supplied by Iinkpv. Listed under Solar Electric Panels. Key published specifications: Cell Mono; Weight 28.5KG±3%; Size 2279 x 1133 x 35mm; Cable cross Section size 4m㎡(IEC),12AWG(UL). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Cell | Mono |
|---|---|
| Weight | 28.5KG±3% |
| Size | 2279 x 1133 x 35mm |
| Cable cross Section size | 4m㎡(IEC),12AWG(UL) |
| Solar cell | 144(6x24) |
| Junction box | IP68/FT50XY, 3*bypass diode |
| Connector | RHC2 |
| Cable Length | 300mm |
| Front/Back Glass | 2.0mm/2.0mm |
| Type | SPM144B/520 |
| Power Tolerance | 0~﹢5W |
| STC | Irradiance 1000W/㎡, Cell temperature 25℃, AM1.5 |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Maximum Static Load,Front/Back | 5400Pa(112lb/ft2)/ 2400Pa(50lb/fts) |
| Frieproof Performance | UL Type 29 |
| Wattage | 520W |
| Output voltage | DC current |
