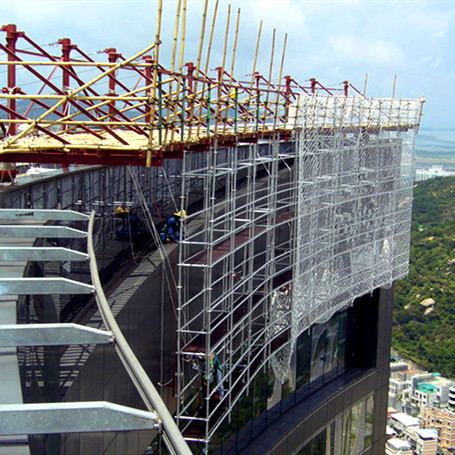

50.8mm Aluminium Ringlock Suspended Type Scaffolding For Curtain Wall Project
Model GN50
Overview
50.8mm Aluminium Ringlock Suspended Type Scaffolding For Curtain Wall Project, listed by GUANGZHOU LEADER EQUIPMENT CO., LTD in Guangzhou, Guangdong. Material Aluminum Alloy 6082-T6, height 2-50m and load capacity 200kg/sqm are among the specifications published.
Technical specifications
| Material | Aluminum Alloy 6082-T6 |
|---|---|
| Main Tube | Tube Wall Thickness: 1.8MM, 3.2MM; Pipe Diameter: 50.8MM |
| Size(WxL) | 085m(W)*2.0m/2.5m/3.0m(L); 1.45m(W)*2.0m/2.5m/3.0m(L) |
| Height | 2-50m |
| Load Capacity | 200kg/sqm |
| Standard | EN1004;EN12810; EN12811 |
| Certificate | CE Certification/GS Certification |
| Thickness | 1.8,3.2mm |
| Diameter | 50.8mm |
| Application | Outdoor Building Construction |
| Tube Wall Thickness | 1.8MM, 3.2MM; Pipe Diameter: 50.8MM |
