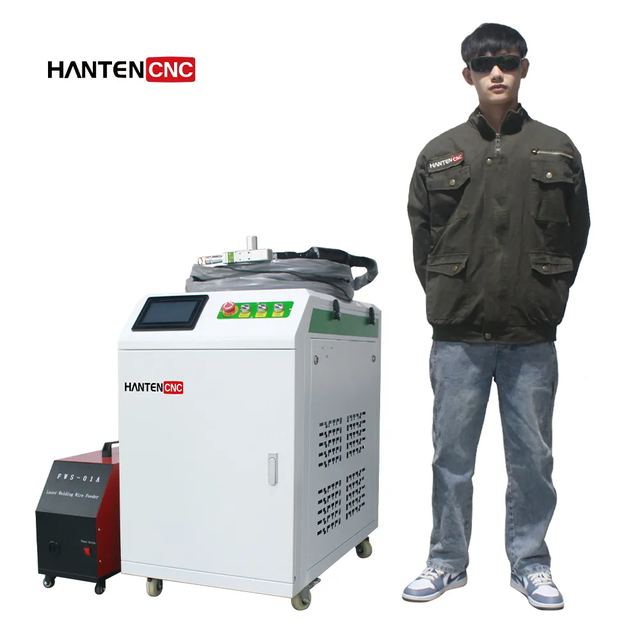

5 in 1 Laser Welding Machines
Model HTW1500
Overview
5 in 1 Laser Welding Machines supplied by HANTENCNC. Key published specifications: Laser Power 1500W; Laser Wavelength 1080nm; Fiber Length 10M/12M/15M/Maximum20M; Operating Mode Continuous Welding. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Power | 1500W |
|---|---|
| Laser Wavelength | 1080nm |
| Fiber Length | 10M/12M/15M/Maximum20M |
| Operating Mode | Continuous Welding |
| Maximum Oscillation Speed | 20000mm/s |
| Operating System | Handheld Welding System |
| Humidity Range Operating Environment | < 70% non-condensing |
| Working Voltage | Single Phase 220V± 10%, 50/60Hz AC |
| Single Phase 220V± 10%, 50/60Hz AC | Three Phase 380V ± 10%, 50/60Hz AC |
| Wire Feeder System | Single Wire Feeder |
| Cooling Mehod | Water Cooled |
| Welding Gap Requirements | ≤0.5mm |
| Dimensions（Welder ） | 1060*610*1050mm |
| Net Weight（Laser Welder ） | 180KG |
| Fiber Interface | QBH |
| Intelligent Protection Functions | Has |
| Collimation Focal Length | 50mm |
| Focusing Focal Length | 150mm |
| Adjustable Spot Size Range | 0-5mm |
| Assist Gas | ≥0.1-1Mpa |
| Effective Aperture | 16mm |
| Oscillation Type | 6 Types |
| Weight | 0.9KG |
