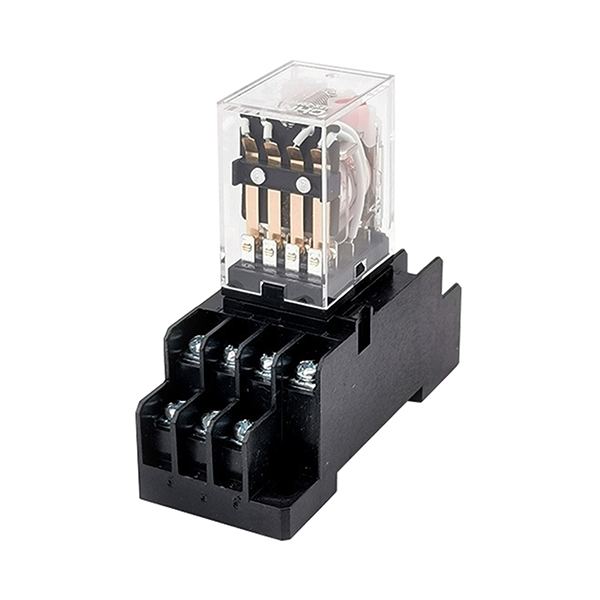

4PDT Electromagnetic Relay
Model ATO-EMR-HH54P/64P
Overview
4PDT Electromagnetic Relay, listed by ATO Relays in Guilin, Guangxi. Terminal type plug in, contact form 4PDT (4 pole double throw) and contact material silver alloy are among the specifications published.
Technical specifications
| Terminal Type | plug in |
|---|---|
| Contact Form | 4PDT (4 pole double throw) |
| Contact Material | silver alloy |
| Coil Power | DC≤0.9W, AC≤1.2VA |
| Leakage Current | ≤1 mA |
| Insulation Resistance | ≥500MΩ at 500V DC |
| Mechanical Service Life | 10 6 Times (frequency: 300 Time/1 min) |
| Dimension | 27x21x35 mm, 27.5×41×35 mm |
| Weight | 40g ~ 60g |
| 10 5 Times (frequency | on 1 time/1s, off 1 time/1s) |
| 10 6 Times (frequency | 300 Time/1 min) |
| 4PDT Electromagnetic Relay Dimension | (Unit: mm) |
