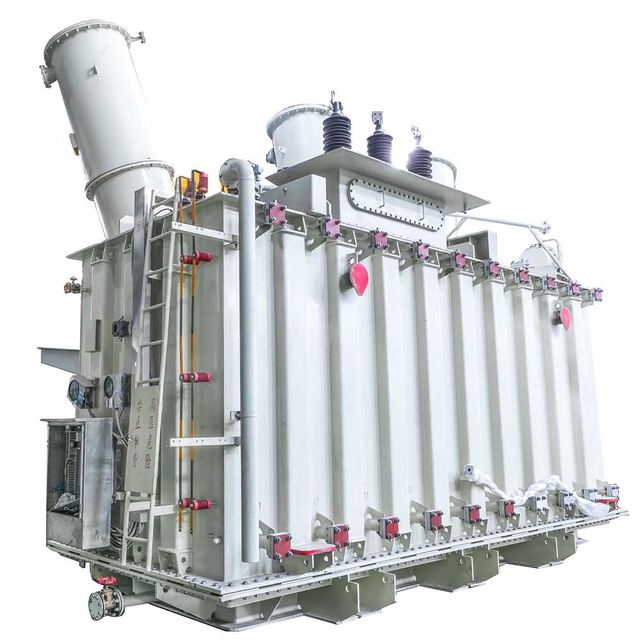

40 MVA Power Transformer
Overview
40 MVA Power Transformer supplied by ZTELEC Yuguang ElectricTechnology(Henan)CO.,Ltd. Listed under Transformers. Key published specifications: Rated voltage 20kv-132kv; Rated capacity 40mva; Certifications & Standards IEC 60076 / IEEE / ANSI / GB; Low Voltage 11 / 33 kV. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated voltage | 20kv-132kv |
|---|---|
| Rated capacity | 40mva |
| Certifications & Standards | IEC 60076 / IEEE / ANSI / GB |
| Low Voltage | 11 / 33 kV |
| Vector Group | Dyn11 / YNd11 / Yyn0 |
| No-Load Loss | 12–18 kW |
| Load Loss | 90–120 kW |
| Cooling | ONAN / ONAF / OFAF |
| Tap Changer | ±5% / ±10% OLTC or DETC |
| Noise Level | ≤ 65 dB |
| Standards | IEC 60076 / IEEE / ANSI |
| Infrastructure & Public Utilities | Airports, railways, data centers, hospitals |
