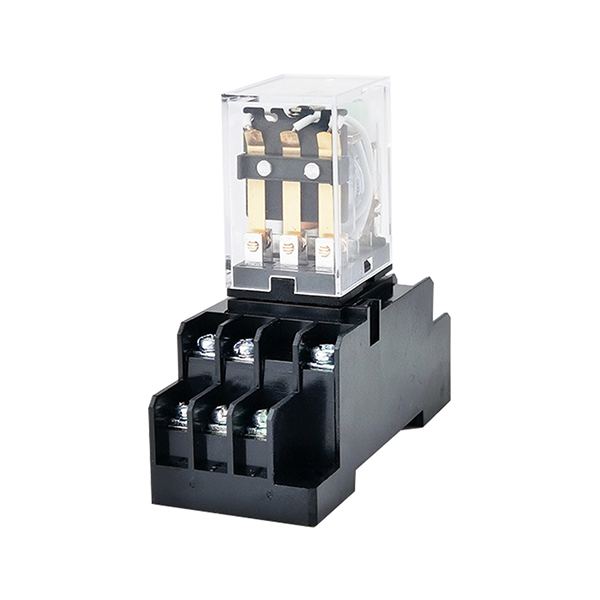

3PDT Electromagnetic Relay
Model ATO-EMR-HH53P/63P
Overview
3PDT Electromagnetic Relay supplied by ATO Relays. Listed under Relays. Key published specifications: Terminal Type plug in; Contact Form 3PDT (3 pole double throw); Contact Material silver alloy; Coil Power DC≤0.9W, AC≤1.2VA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Terminal Type | plug in |
|---|---|
| Contact Form | 3PDT (3 pole double throw) |
| Contact Material | silver alloy |
| Coil Power | DC≤0.9W, AC≤1.2VA |
| Leakage Current | ≤1 mA |
| Insulation Resistance | ≥500 MΩ at 500V DC |
| Mechanical Service Life | 10 6 Times (frequency: 300 Time/ 1min) |
| Dimension | 27×21×35 mm, 27.5x31x35 mm |
| Weight | 35g ~ 80g |
| 10 5 Times (frequency | on 1 time/1s, off 1 time/1s) |
| 10 6 Times (frequency | 300 Time/ 1min) |
| 3PDT Electromagnetic Relay Dimension | (Unit: mm) |
