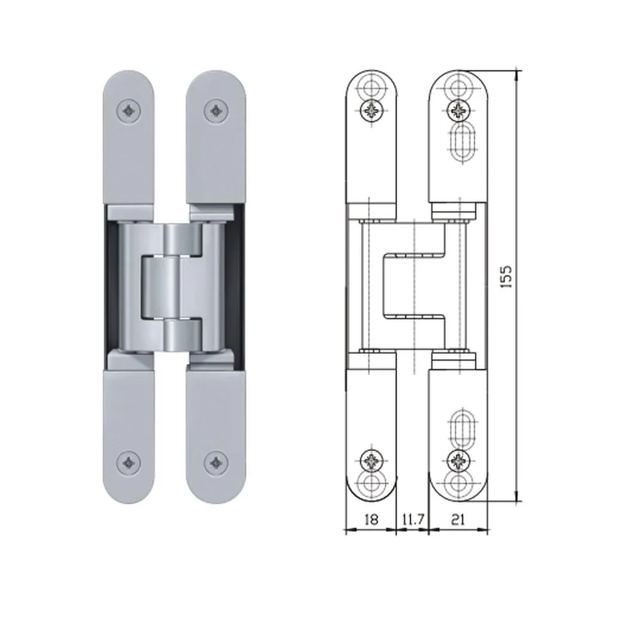

3D adjustable Concealed Hinge
Overview
3D adjustable Concealed Hinge supplied by umaylocks. Key published specifications: Load capacity 40 kg / 2pcs; Height 155mm; Widths frame:21mm/leaf:18 mm; Min.Door Thickness 25mm chart. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Load capacity | 40 kg / 2pcs |
|---|---|
| Height | 155mm |
| Widths | frame:21mm/leaf:18 mm |
| Min.Door Thickness | 25mm chart |
| Router Bit Diameter | 16mm |
| Door thickness | 26-33mm |
| Max.door width | 850mm |
| Height adjustment screw | ±2mm |
| Height (M) | 140/150/160/180/200 mm |
