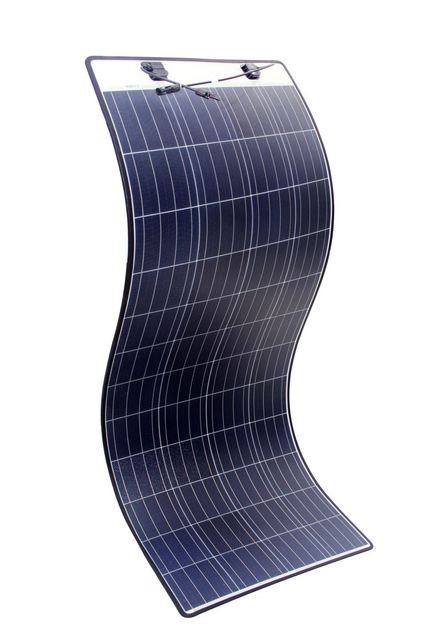

380W Flexible solar panel
Overview
380W Flexible solar panel supplied by Iinkpv. Listed under Solar Electric Panels. Key published specifications: Cell Mono; Weight 7.4KG±3%; Size 2002 x 1000 x 17mm; Cable cross Section size 4m㎡(IEC),12AWG(UL). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Cell | Mono |
|---|---|
| Weight | 7.4KG±3% |
| Size | 2002 x 1000 x 17mm |
| Cable cross Section size | 4m㎡(IEC),12AWG(UL) |
| Solar cell | 72(6x12) |
| Junction box | IP68/FT50XY, 3*bypass diode |
| Connector | RHC2 |
| Cable Length | 300mm |
| Type | SMS380W/72 |
| Power Tolerance | 0~﹢5W |
| STC | Irradiance 1000W/㎡, Cell temperature 25℃, AM1.5 |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Maximum Static Load,Front/Back | 5400Pa(112lb/ft2)/ 2400Pa(50lb/fts) |
| Frieproof Performance | UL Type 29 |
| Wattage | 380W |
| Output voltage | DC current |
