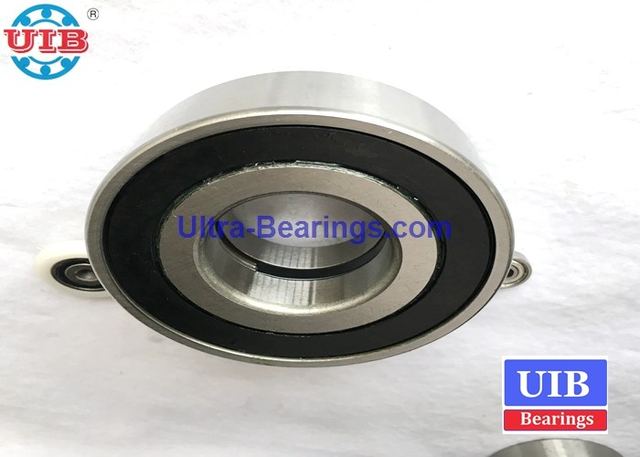

36*60*37mm Auto Wheel Hub Sealed Bearing P5 P6 Precision High Temperature supplied by UIB (Xiamen) Bearing CO.,LTD. Listed under Roller Bearings. Key published specifications: Certification TS14909; Applicant Auto Wheel Hub Bearing; Grease Lubricate Speed 14500 (r/min); Oil Lubricate Speed 11000 (r/min). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	TS14909
Applicant	Auto Wheel Hub Bearing
Grease Lubricate Speed	14500 (r/min)
Oil Lubricate Speed	11000 (r/min)
Ball Groove	Polished, Grinded
Hardness	HRC60~ 65
Bearing Grade	P6, P5 Grade
Bearing type	Taper roller bearing
Roller row	Single
cage material	Press steel
Ring material	GCR15/ AISI52100
Oil hole	NON
Bearing clearance	C3
Bearing weight	0.953kg
Inner diameter	36mm
Outer diameter	60mm
Thickness	37 mm
Heat treatment method	bainite heat treatment
Ball grade	G10
