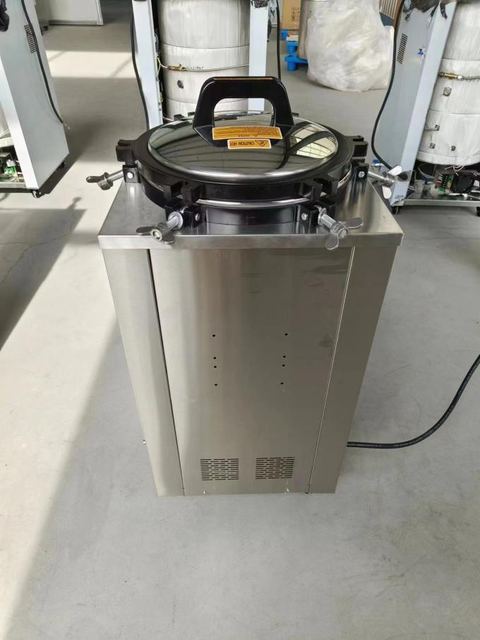

35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer
Model STV-LD35
Overview
35L Bolt Type Top Loading Sterilizer With Gravity Exhaust Vertical Steam Sterilizer supplied by Stertek（Nanjing）Medical Equipment Co.,ltd. Key published specifications: Certification CE, ISO13485,ISO9001; Capacity 35L; Chamber Size Ø300×500mm; Door Structure Bolt Lock Door. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO13485,ISO9001 |
|---|---|
| Capacity | 35L |
| Chamber Size | Ø300×500mm |
| Door Structure | Bolt Lock Door |
| Bucket Number | 1 Pcs Sterilizing Bucket |
| Data Recording | No Printer |
| Material | Stainless Steel 304 |
| Net Weight | 41kg |
| Working Press. | 0.22Mpa |
| Model | STV-LD35 |
| Volume | 35L |
| Power | 3.5kW |
| Voltage | AC 220V,50HZ |
| Rated working pressure | 0.22Mpa |
| Sterilization time setting range | 4~120 min |
| Drying time setting range | 0~240min |
| Chamber volume | Ø300×500 |
| Bucket dimension | Ø280×400 |
| Basket dimension(optional) | Not optional |
| Gross/net weight | 58/41KG |
| Integrated automatic protection functions | Over-temperature protection |
| Number of Baskets | 2 pcs sterilizing baskets |
| Display | LCD Touch Screen |
