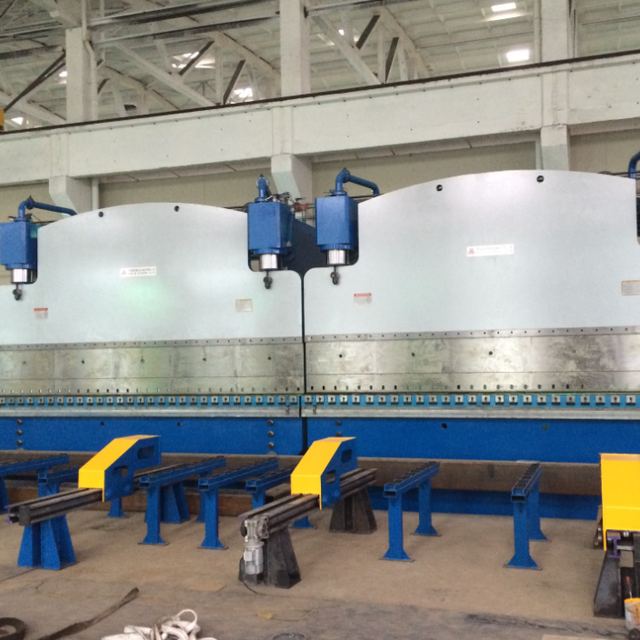

320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled
Model 2-WE67K-320/6000
Overview
320T×6000mm CNC Tandem Hydraulic Press Brake, DELEM DA53T Controlled supplied by Wuxi CMC Machinery Co.,Ltd. Listed under Press Brakes. Key published specifications: Working Force 2 × 320 Ton; Length of Table 2 × 6000 mm; Distance Between Frames 5200 mm; Throat Depth 750 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Working Force | 2 × 320 Ton |
|---|---|
| Length of Table | 2 × 6000 mm |
| Distance Between Frames | 5200 mm |
| Throat Depth | 750 mm |
| Open Height | 950 mm |
| Stroke | 320 mm |
| Working Speed | Unload: 60mm/s Working: 7mm/s Return: 60mm/s |
| Main Motor | 2 × 30 kW |
| Linear Raster Displayer Sensor | FAGAR, SPAIN |
| Main Electric Elements | Schneider, France Brand |
| Weight | 2 × 45000 kg |
| Option 8 | Spare parts (for 320 ton model) |
| Machine Type | CNC / Hydraulic Press Brake |
| Working | 7mm/s |
| Type | DELEM DA53T (Delem Co., Netherlands) |
| Above floor height | 4500 mm |
| Total length with side unloading system | 17500 mm |
| Total width with front support | 4040 mm |
