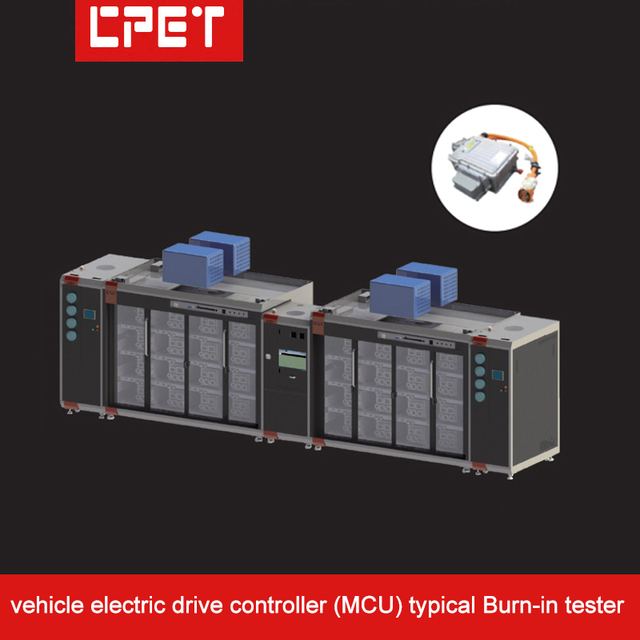

320kW Burn-in Tester for Electric Drive Controllers
Overview
320kW Burn-in Tester for Electric Drive Controllers, listed under Peripheral Line Drivers, Bus Controllers, Network Controllers by Shenzhen CPET Electronics Co., Ltd in Shenzhen, Guangdong. The listing gives input power 320kW, water pressure range 0.05-0.2MPa and volume size 880*1000*1900mm.
Technical specifications
| Input Power | 320kW |
|---|---|
| Water Pressure Range | 0.05-0.2MPa |
| Volume Size | 880*1000*1900mm |
| Channel Diameter | 3/4 Inch |
| Overall size | 6900*1600*2050mm |
| Total input voltage | Three-phase five-wire system 380Vac (rated) |
| Total input current | 250A |
| Total input power | 150kW |
| Fire protection requirements | Materials meet UL 94V0 rating |
| Safety requirements | Comply with IEC62368 international standard design requirements |
| Burn-in bits/cabinet | 16 bits/cabinet |
| Burn-in product power | 20kW/bit |
| Burn-in product input voltage | 150-1000Vdc |
| Burn-in product input current | 50A/bit |
| Burn-in Product Load Category | Inductive/Motor/AC Feedback Load |
| Burn-in product load current | 350A (inductor/motor)/40A (AC feedback load) |
| Auxiliary voltage of Burn-in products | 8-30Vdc |
| Auxiliary current of Burn-in products | 10A |
| Power Connector Type | SB50 (HV+/HV-) |
| AC Connector Type | PA350 (L1/L2/L3/N/PE) |
| Signal Connector Type | 24Pin 5566 |
| Constant temperature range | Room temperature+5℃-60℃ |
| Feedback power | 256kW |
| Material | Cold rolled sheet |
| Water temperature range | Room temperature+5°C-60°C |
| Water temperature accuracy | ±5°C |
| Number of serial products/way | 4/way |
| Dissipated power/circuit | 4kW/way |
| Cooling method | Chilled water or air cooling |
| Flow range | 3-15L/min |
