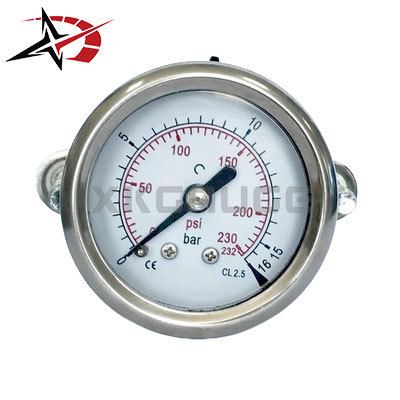

304 Stainless Steel Panel Mount Pressure Gauge 1.5 Inch 16 Bar
Model Y40
Overview
304 Stainless Steel Panel Mount Pressure Gauge 1.5 Inch 16 Bar supplied by Anhui Xingkong Instrument Co., Ltd. Key published specifications: Certification CE, ISO; Product Type Panel Mount Pressure Gauge; Model Y40; Design Standard EN 837-1. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO |
|---|---|
| Product Type | Panel Mount Pressure Gauge |
| Model | Y40 |
| Design Standard | EN 837-1 |
| Dial Size | 40 mm |
| Pressure Range | 16 Bar |
| Accuracy | Class 2.5 |
| Mounting Type | Panel Mount |
| Pressure Element | Stainless Steel Bourdon Tube |
| Movement | Stainless Steel |
| Process Connection | Stainless Steel |
| Case Material | 304 Stainless Steel |
| Window Material | Instrument Glass |
| Liquid Filling | Silicone Oil / Glycerin (Optional) |
| Protection Rating | IP65 |
| Ambient Temperature | -20°C to +60°C |
| Medium Temperature | Maximum +60°C |
| Connection Threads | G, BSP, PT, BSPT, NPT |
| Fill Fluid | Silicone Oil / Glycerin |
| Connection | G BSP PT BSPT NPT |
| Mounting | Panel Mount |
| Protection | IP65 |
| Standard | EN 837-1 |
| Application | Hydraulic Compressor Marine Industrial |
