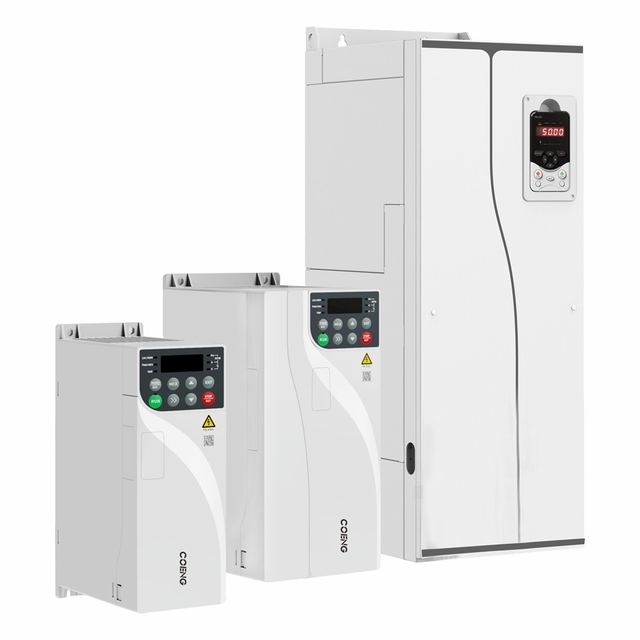

3 Phase Induction Motor Variable Frequency Drive For Crane Ac S Curve Acceleration Deceleration
Model HV 610-10
Overview
3 Phase Induction Motor Variable Frequency Drive For Crane Ac S Curve Acceleration Deceleration supplied by SENDEN TECH LIMITED. Key published specifications: Certification CE, IEC; Input Power Frequency (50Hz/60Hz)±5%; V/F Curve Straight-line Type, Multi-point Type; Acceleration And Deceleration Curve Straight Line, S-curve. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, IEC |
|---|---|
| Input Power Frequency | (50Hz/60Hz)±5% |
| V/F Curve | Straight-line Type, Multi-point Type |
| Acceleration And Deceleration Curve | Straight Line, S-curve |
| Speed Stability | OLVC: 0.2%; CLVC: 0.1% |
| Torque Response | ≤ 5ms, In Vector Control Mode |
| Overload Capacity | 150% 1min/5min, 180% 10s/5min |
| Input Voltage | 380V (-15%) To 480V (+10%) Three-phase |
| Input Frequency Resolution | Digital Setting: 0.01Hz; Analog Setting: 0.01Hz |
| Starting Torque | OLVC: 150% (0.5Hz); CLVC: 200% (0Hz) |
| Analog Output Terminals | 1-channel 0V-10V/0(4)mA-20mA |
| Acceleration/Deceleration Time | 0.0s～3200.0s; 0.0min～3200.0min |
| Speed Range | 1:10 V/F; 1:100 OLVC; 1:1000 CLVC |
| Protection Rating | IP20 |
| Motor Type | Asynchronous Motor, Synchronous Motor |
