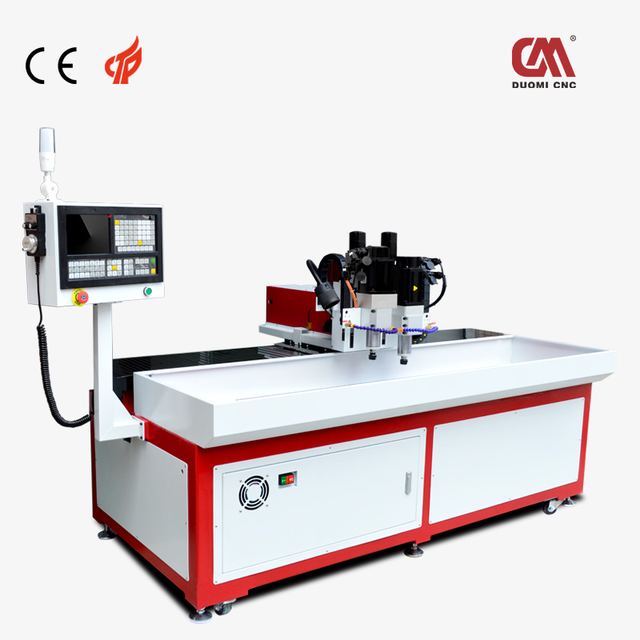

3-Axis CNC Drilling Machine for Metal Furniture Components
Model DNC-1540DT
Overview
3-Axis CNC Drilling Machine for Metal Furniture Components, listed by Duomi (Guangdong) Intelligent Equipment Co., Ltd in Dongguan, Guangdong. Published figures include machine type DNC-1540DT 3-Axis CNC Drilling Machine, xyz three-axis machining stroke X1500mm Y400mm Z200mm and spindle taper hole ER20.
Technical specifications
| Machine type | DNC-1540DT 3-Axis CNC Drilling Machine |
|---|---|
| XYZ three-axis machining stroke | X1500mm Y400mm Z200mm |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~16mm |
| Tapping diameter range | M2~M14 |
| Chamfer range | 1~16mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.01mm |
| Table size | 1500*380mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 1500KG |
| Floor space | 3000*1500*1700mm |
