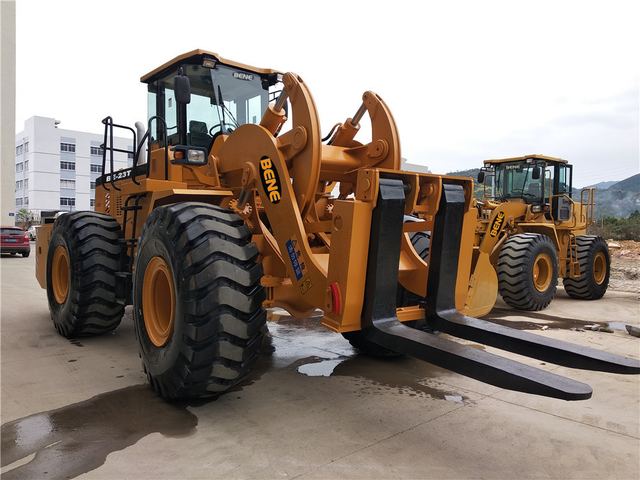

28ton forklift loader 28 ton fork loader with Cumins engine
Model BEM978-28T
Overview
28ton forklift loader 28 ton fork loader with Cumins engine supplied by BENE Machinery Co., Ltd. Key published specifications: Certification ISO9001; Engine WEICHAI; Load Capacity 28000kgs; Transmission Hydraulic. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Engine | WEICHAI |
| Load Capacity | 28000kgs |
| Transmission | Hydraulic |
| Model | BEM971-28T |
| Rated load | 28 TON |
| Operating weight | 30 TON |
| Max. breakout force | 200 kN |
| Max. tractive force | 200 kN |
| Max. dump height | 2700 mm |
| Max. dump distance | 2220 mm |
| Overall dimension | 8880 x 3100 x 3500 mm |
| Min. turing radius | 4590 mm |
| Engine type | Turbocharged, 6 cylinders, diesel |
| Rated power | 175kW (240HP) |
| Gear shift | forward 2 and reverse 1 |
| Max. speed | 38 km/h |
| Wheel base | 3350 mm |
| Min. ground clearance | 450 mm |
| Total cycle time | 15 s |
| Fuel tank | 300 L |
