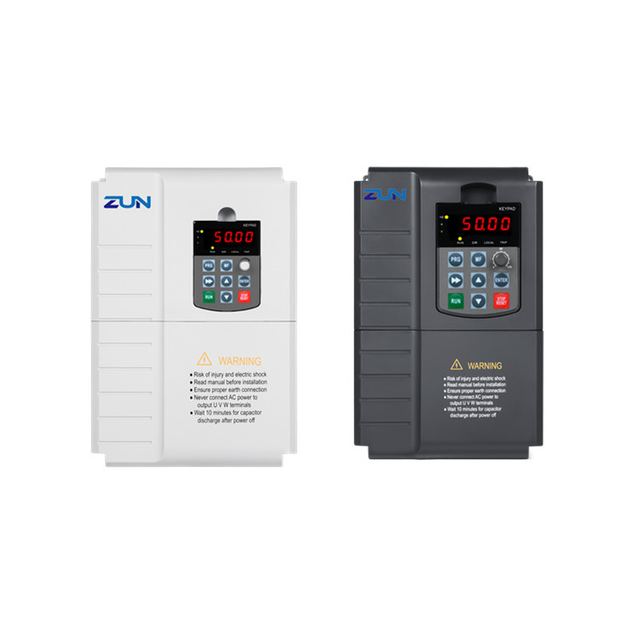

220V MPPT Solar Pump Inverter
Model SG600-2S-0K7G
Overview
220V MPPT Solar Pump Inverter supplied by Shenzhen ZK Electric Technology Co., Ltd. Key published specifications: Rate current 3.8A; Output voltage ( 3PH VAC) 220V/240V; Applicable for pumps 0.75KW; MPPT voltage (VDC) 260 to 375. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rate current | 3.8A |
|---|---|
| Output voltage ( 3PH VAC) | 220V/240V |
| Applicable for pumps | 0.75KW |
| MPPT voltage (VDC) | 260 to 375 |
| Protection Level | IP20 |
| Input Voltage | 150-450VDC Or 220VAC |
| Output Voltage | 220VAC Output |
| Output Frequency | 0-50HZ/60HZ |
| Output Type | TRIPLE |
| Type | DC/AC Inverters |
| Maximum DC power input | 450VDC for 220-240VAC output /900VDC for 380-460VAC output |
| Rated output voltage | 3-phase , 110V/160V/220V. 3-phase, 220V/240V/380V/460V/480V |
