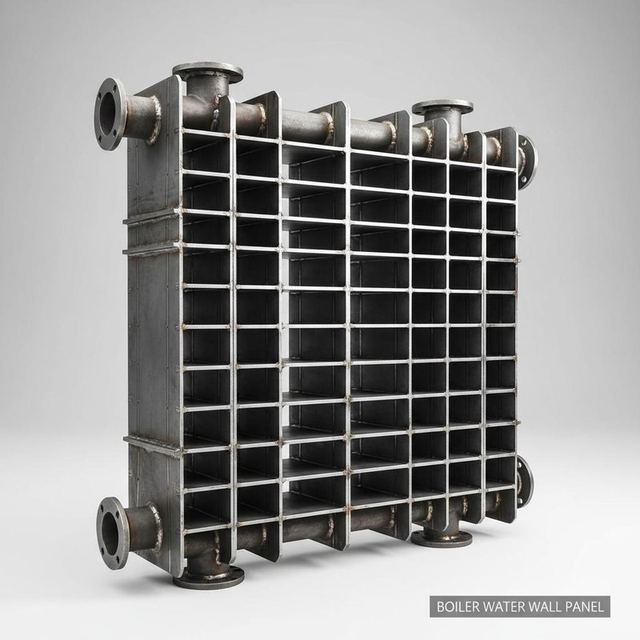

20G Material φ51×4mm Tube Modular Section Boiler Water Wall Panel for Industrial Steam Generators
Model MW-20G-51x4
Overview
20G Material φ51×4mm Tube Modular Section Boiler Water Wall Panel for Industrial Steam Generators supplied by Boiler Co. Ltd. Zhangjiagang HuaDong Boiler Co., Ltd. Listed under Boilers. Key published specifications: Tube Outer Diameter φ51mm; Tube Wall Thickness 4mm; Tube Material 20G (GB5310); Membrane Bar Material Q235B Carbon Steel. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Tube Outer Diameter | φ51mm |
|---|---|
| Tube Wall Thickness | 4mm |
| Tube Material | 20G (GB5310) |
| Membrane Bar Material | Q235B Carbon Steel |
| Tube Pitch | 80-100mm |
| Panel Width | Up To 2500mm |
| Panel Length | Up To 12000mm |
| Welding Method | High-frequency Resistance Welding |
| Working Pressure | Up To 5.3MPa |
| Application | Industrial Steam Boiler, Replacement |
| Tube OD | φ51mm |
| Standard | GB5310, GB/T 9222 |
| Certification | ISO 9001:2015, GB/T 9222 |
