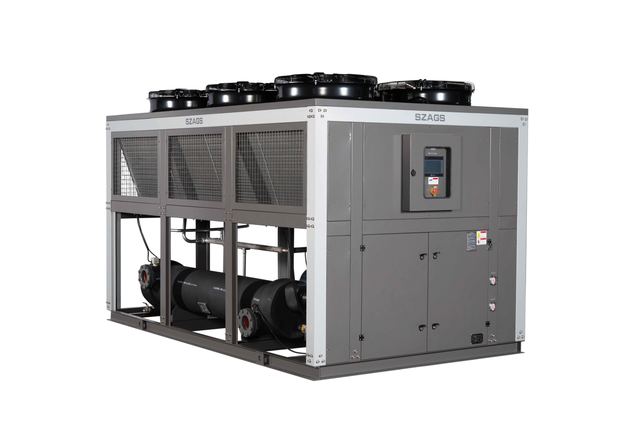

200HP Air-Cooled Chiller R22/R407C/R134A Cooling Media for Optimal Performance at Anges
Model AGS-200ADH
Overview
200HP Air-Cooled Chiller R22/R407C/R134A Cooling Media for Optimal Performance at Anges supplied by Shenzhen Anges Machinery Co., Ltd. Key published specifications: Product Attribute Technical Specification; Noise Level ≤65dB(A); Voltage 380V/415V/440V; Refrigerant R22/R407C/R134a. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Product Attribute | Technical Specification |
|---|---|
| Noise Level | ≤65dB(A) |
| Voltage | 380V/415V/440V |
| Refrigerant | R22/R407C/R134a |
| Control System | PLC |
| Frequency | 50Hz/60Hz |
| Evaporator Type | Shell And Tube |
| Compressor Type | Screw |
| Certification | ISO9001, CE |
| Model | AGS-200ADH |
| Cooling Type | Air Cooled |
| Cooling Media | R22/R407C/R134A |
| Cooling Capacity | 653.8kw |
| Plc Controller | Siemens |
| Air Flow | 205000m3/h |
| Dimension | 4200*4400*2383mm |
| Weight | 5720kg |
