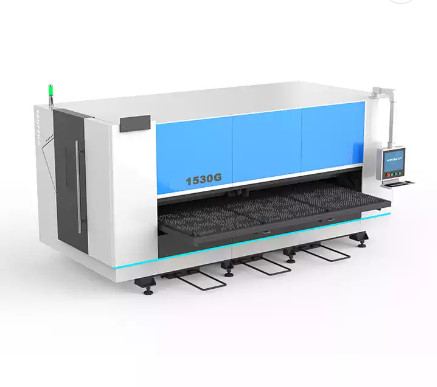

2000W / 3000W CNC Fiber Laser Cutter Machine With Single Table

Model 1530G

2000W / 3000W CNC Fiber Laser Cutter Machine With Single Table

Overview

Qingdao Qingtai Intelligent Technology Co., Ltd in Qingdao, Shandong lists 2000W / 3000W CNC Fiber Laser Cutter Machine With Single Table. The listing gives certification ISO, table maximum load 700kg and cooling mode Water Cooling.

Technical specifications

CertificationISO
Protection Level Of Total Power SupplyIP54
Table Maximum Load700kg
Cooling ModeWater Cooling
Cutting Speed80m/min
Working Area3000mmX1500mm
Laser Power1000W /1500W/ 2000W / 3000W
Work Area3000*1500mm or 118.11*59.06inches
X-axis Travel3000mm/118.11inches
Y-axis Travel1500mm/59.06inches
Z-axis Travel120mm/4.72inches
Positioning Accuracy±0.05mm
Repeated Positioning±0.02mm
Maximum Speed80m/min
Maximum Acceleration0.8G
Outline Size(mm)4890x2300x2290
Power ParametersThree-phase AC 380V 50Hz
Laser headRaytools / WSX
Cutting Area1500mm*3000mm
Control System BrandCypcut/ TubePro
Max cutting Speed30m/min
X axis stroke1500mm
Laser TypeFiber Laser
Overall size13.5m*5.5m*2.5m
