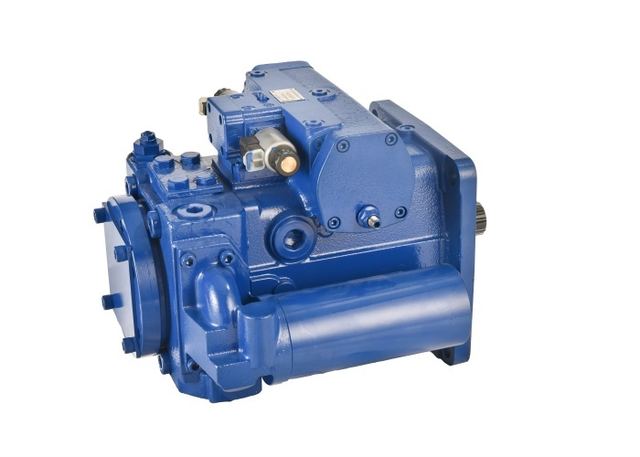

180ml/r A4VG180EP3 Hydraulic Piston Pump For Concrete Pump Trucks

Model A4VG180EP31/32L-NSD02F071F

180ml/r A4VG180EP3 Hydraulic Piston Pump For Concrete Pump Trucks

Overview

180ml/r A4VG180EP3 Hydraulic Piston Pump For Concrete Pump Trucks supplied by Shandong Keystone Hydraulic Co.,Ltd. Listed under Piston Pumps. Key published specifications: Output Volume 180ml/r; Rotation Direction Levorotation; High Pressure Overflow Valve 450bar; Fuel Diesel,hydraulic Oil,Electric,NO,Gasoline. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Output Volume180ml/r
Rotation DirectionLevorotation
High Pressure Overflow Valve450bar
FuelDiesel,hydraulic Oil,Electric,NO,Gasoline
MaterialSteel,Aluminum Alloy,casting,HT300 Casting Body,Cast Iron
Displacement180ml/r
Rated Speed2500rpm
Maximum Speed2900rpm
Rated Pressure400bar
Maximum Pressure450bar
Control ModeElectric proportional control (DC 12V)
Input Shaft13T 8/16DP ANSI B92.1a
Mounting FlangeSAE J7444
CertificationSIO9001
