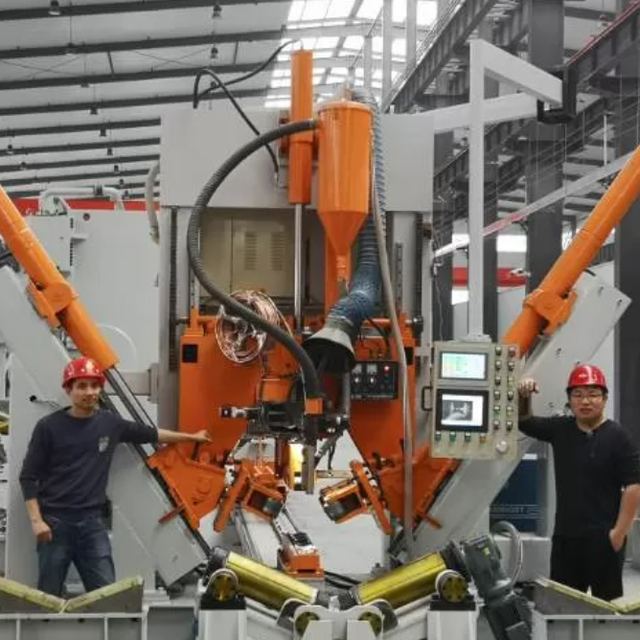

12m Pulse MIG CNC Pole Shut Welding
Model CNCS400/12000
Overview
12m Pulse MIG CNC Pole Shut Welding supplied by Wuxi CMC Machinery Co.,Ltd. Listed under Press Brakes. Key published specifications: Parameter Item Technical Specification; Applicable Pole Diameter Range 60mm - 400mm; Max. Welding Pole Length 12000mm; V-slot Trolley Length 13000mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Parameter Item | Technical Specification |
|---|---|
| Applicable Pole Diameter Range | 60mm - 400mm |
| Max. Welding Pole Length | 12000mm |
| V-slot Trolley Length | 13000mm |
| Applicable Plate Thickness | 2.5mm (60~200mm); 3mm/4mm (60~400mm); 5mm (120~400mm); 6mm (200~400mm) |
| Main Servo Motor Power | 2.3KW |
| Clamping Motor Type | AC Servo Motor |
| Welding Wire Diameter | 1.2mm / 1.6mm |
| Working Speed | 1~3m/min (adjustable by plate thickness) |
| Main Electrical Components | High-standard imported industrial electrical parts |
| Welding Power Source | AOTAI well-known welding power supply |
| Overall Dimension (L*W*H) | 27000*2500*3200mm |
| Operator Required | 1 Person |
| Product Model | CNCS400/12000 CNC Pole Shut Welding Machine |
| Workpiece Length | 7m |
