Overview

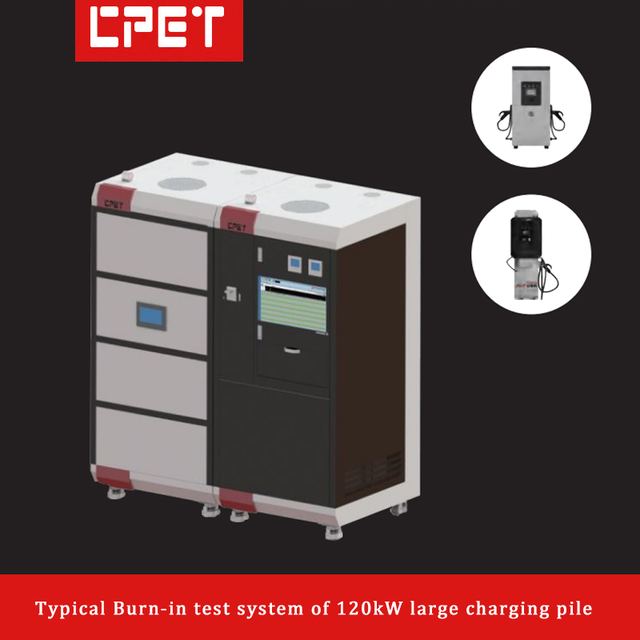

120kW Burn In Chamber with Cold Rolled Sheet supplied by Shenzhen CPET Electronics Co., Ltd. Listed under Power Supplies. Key published specifications: Guarantee Period One Year; Material Cold Rolled Sheet; Total Input Current 182A; Size 1600*1000*2050mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Guarantee Period	One Year
Material	Cold Rolled Sheet
Total Input Current	182A
Size	160010002050mm
Overall size	160010002050mm
Total input voltage	Three-phase five-wire system 380Vac (rated)
Total input power	System power 120kW
Fire protection requirements	Materials meet UL 94V0 rating
Safety requirements	Comply with IEC62368 international standard design requirements
Burn-in product DC power	120kW/bit
Burn-in product DC voltage	200-1000Vdc
Burn-in product DC current	250A/bit
Burn-in product AC power	120kW/bit
Burn-in products AC voltage	220/380Vac/50Hz Three-phase five-wire
Burn-in product AC current	300A/bit
AC Connector Type	PA350 (L1/L2/L3/N/PE)
DC Connector Type	DC bronze medal
Signal Connector Type	RJ45 (network port)
Input power	120kW
Volume size	8008002050mm
Product area air duct direction	Forward wind, upward wind
Cooling method	Air cooling
Control precision	±(1%+0.2%FS)
Bad way of reporting	Audible alarm
Report format	CSV format
Control system	Windows 10
Display medium	Computers and Monitors
Manipulating medium	Mouse and keyboard
Communication method	Cable
Heat dissipation type	Air cooling
