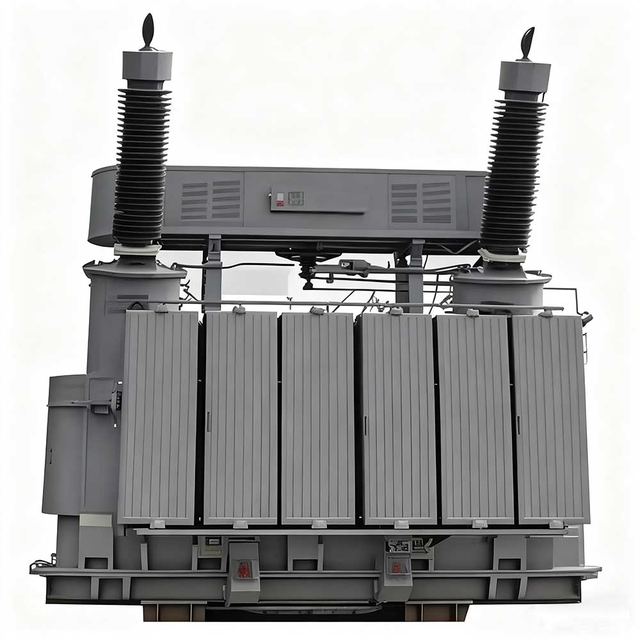

110kV Railway Traction Transformer
Overview
110kV Railway Traction Transformer supplied by ZTELEC Yuguang ElectricTechnology(Henan)CO.,Ltd. Listed under Transformers. Key published specifications: Rated voltage 110/66KV; Rated capacity 8000kVA~63000 kVA; Certifications & Standards EC、GB、ANSI/IEEE、NEMA; Phase Conversion Three-phase AC to Two-phase Traction. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated voltage | 110/66KV |
|---|---|
| Rated capacity | 8000kVA~63000 kVA |
| Certifications & Standards | EC、GB、ANSI/IEEE、NEMA |
| Phase Conversion | Three-phase AC to Two-phase Traction |
| Rated Power | 10–50 MVA (typical range, customizable) |
| Cooling Method | ONAN / ONAF / ONAN/ONAF |
| Insulation Level | Class F / 155 °C |
| Temperature Rise | 65 K (winding), 55 K (oil) |
| Noise Level | ≤ 75 dB |
| High-Speed Rail Application | Verified on multiple lines |
