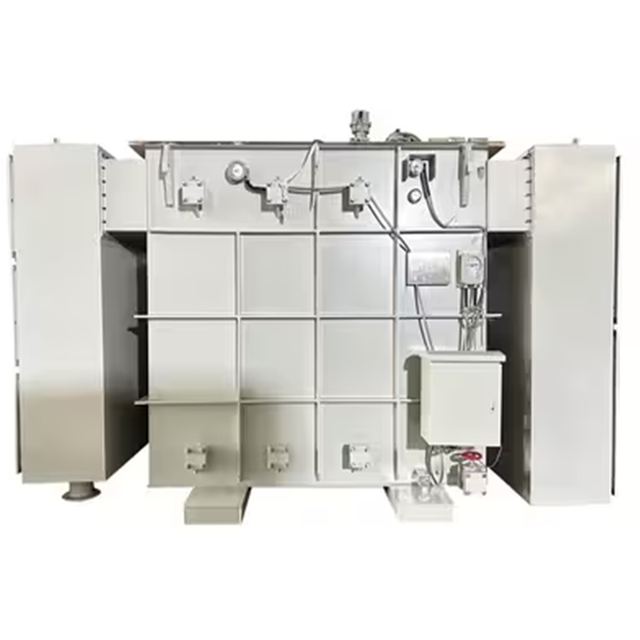

10MVA Three Phase Substation Transformer
Overview
10MVA Three Phase Substation Transformer supplied by ZTELEC Yuguang ElectricTechnology(Henan)CO.,Ltd. Listed under Transformers. Key published specifications: Rated voltage 4.16kv-34.5kv; Rated capacity 800kva-10mva; No. Particulars; kV 4.16Y/2.4. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated voltage | 4.16kv-34.5kv |
|---|---|
| Rated capacity | 800kva-10mva |
| No. | Particulars |
| kV | 4.16Y/2.4 |
| mm | 4000*3200*3600 (L*W*H) |
| Insulation Fluids | mineral insulating oil, Envirotemp™ FR3™ fluid, |
| Standards | ANSI/IEEE,DOE, CSA, AS/NS, IEC, etc |
