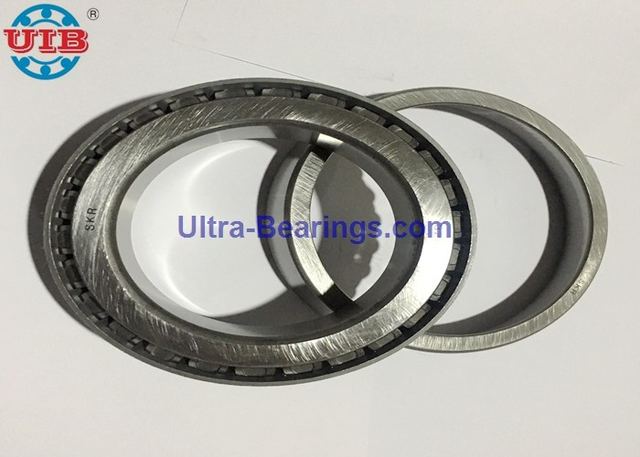

105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
Overview
UIB (Xiamen) Bearing CO.,LTD in Xiamen, Fujian lists 105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers under Steel Wheel Type Rollers. The listing gives certification TS14909, weight 0.573kg and grease lubricate speed 4500 (r/min).
Technical specifications
| Certification | TS14909 |
|---|---|
| Weight | 0.573kg |
| Grease Lubricate Speed | 4500 (r/min) |
| Oil Lubricate Speed | 5600 (r/min) |
| Cr | 80.8 KN |
| Cor | 105 KN |
| Bearing Grade | P6, P5 Grade |
| Bearing type | Taper roller bearing |
| Roller row | Single |
| cage material | Press steel |
| Ring material | GCR15/ AISI52100 |
| Oil hole | NON |
| Bearing clearance | C3 |
| Bearing weight | 0.573kg |
| Inner diameter | 45mm |
| Bearing applicant | automobile and universal |
| Outer diameter | 85mm |
| Thickness | 23 mm |
| Heat treatment method | bainite heat treatment |
| Ball grade | G10 |
