Overview

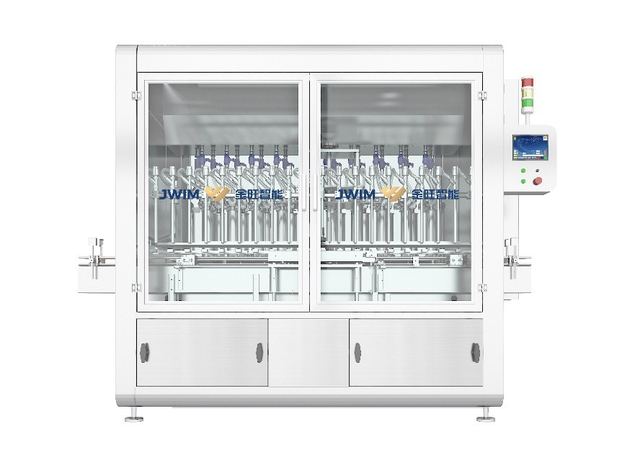

100ml Bottle Piston Liquid Filling Machine supplied by Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd. Listed under Filling Machine. Key published specifications: Capacity 100ml: ≤6000 BPH 1000ml:≤3000 BPH; Filling Volume 50-1000ml; Filling Precision ±1g (50-200ml) ±1.5g (200-500ml) ±2g(1000ml); Filling Nozzle Diameter φ18mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Capacity	100ml: ≤6000 BPH 1000ml:≤3000 BPH
Filling Volume	50-1000ml
Filling Precision	±1g (50-200ml) ±1.5g (200-500ml) ±2g(1000ml)
Filling Nozzle Diameter	φ18mm
Power Source	～380V 50Hz/3.55KW
External Dimension	2435×1490×2480mm(L×W×H)
Weight	About 1200kg
Certification	CE,ISO
Filling Heads	16 Nozzles
Filling Capacity	100ml-6000bph
Max Filling Volume	1000ml
Voltage	220V/380V
Application	Pesticide, Daily Chemical
