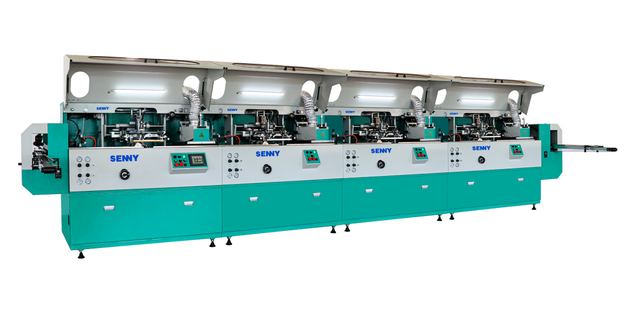

1-8 Color Fully Automatic Bottle Screen Printer For Round Containers Up To 100pcs/Min
Model SL1466
Overview
1-8 Color Fully Automatic Bottle Screen Printer For Round Containers Up To 100pcs/Min supplied by SENNY PRINTING EQUIPMENT CO.,Ltd. Listed under Other Printing Machines. Key published specifications: Contacts Ms. Mary Liu; Certification CE SGS; Auto Grade Fully Automatic; Plate Type Screen Printer. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Contacts | Ms. Mary Liu |
|---|---|
| Certification | CE SGS |
| Auto Grade | Fully Automatic |
| Plate Type | Screen Printer |
| Printed Colors | 1 To 8 |
| Printing Durability | High Durability |
| Machine running speed | Up to 100pcs/min |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
