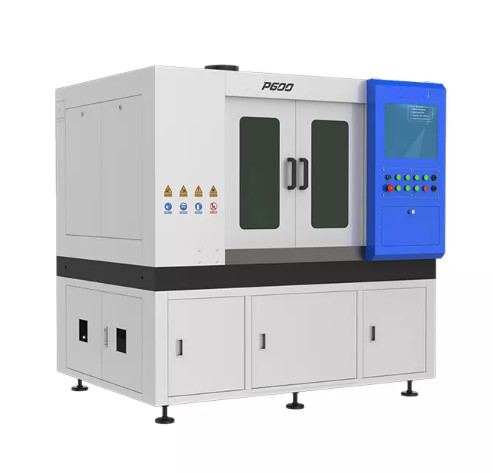

0.2mm-5mm Metal Sheet Laser Cutting Machine 2000W 3000W 4000W
Model P600
Overview
0.2mm-5mm Metal Sheet Laser Cutting Machine 2000W 3000W 4000W supplied by Qingdao Qingtai Intelligent Technology Co., Ltd. Key published specifications: Certification ISO; Mode Of Operation Continuous Wave; Products Handled Sheet Metal; Laser Type Fiber Laser. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO |
|---|---|
| Mode Of Operation | Continuous Wave |
| Products Handled | Sheet Metal |
| Laser Type | Fiber Laser |
| Cutting Thickness | 0.2mm-5mm |
| Cutting Area | 600mm*600mm |
| Processing format (length * width) | 600*600mm |
| Laser Power | 1kW-6kW |
| X-axis travel | 600mm |
| Y-axis travel | 600mm |
| Z-axis travel | 100mm |
| X/Y axis positioning accuracy | ±0.02mm |
| Repeated positioning accuracy of X/Y axis | ±0.005mm |
| Total power | ≤3000W |
| Total Weight | About 1.4T |
| Size | 1800*1430*1800mm |
| Laser head | Raytools / WSX |
| Cutting Speed | 20m/min |
| Control System Brand | Cypcut/ TubePro |
| Max cutting Speed | 30m/min |
| X axis stroke | 1500mm |
| Overall size | 13.5m*5.5m*2.5m |
